Dimension
- 600 mm (H)
- 900 mm (W)
- 480 mm (D)

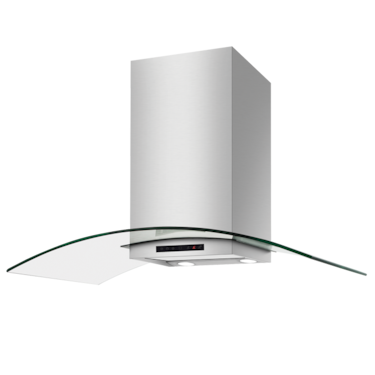

Stainless Steel curved glass cube Canopy
900W
x
480D
x
600H(mm)
Wall Mounted Canopy
Fan
90cm Stainless Steel and Curved Glass Cube Canopy with 800 cubic m/h extraction and high output LED lighting

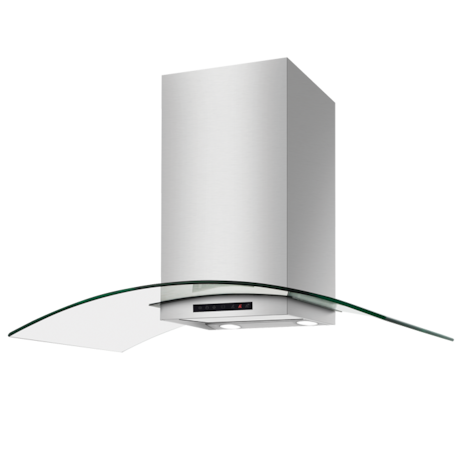

Stainless Steel curved glass cube Canopy
Powerful Twin Blade centrifugal motor
The Cube houses a powerful twin blade motor to ensure maximum extraction of unwanted steam and vapours from cooking.
Conversation friendly noise levels
Enjoy cooking and conversation with a quieter motor delivering extraction without high noise levels.
Easy clean touch control panel
A flat touch control panel makes the most touched surface on your rangehood even easier to use
Dishwasher Safe Aluminium micro-mesh filters
Simply remove the filter panels and wash in your dishwasher to maintain performance and appearance.
Low Energy with high levels of illumination
Delivering excellent illumination with cost conscious low energy use, as well as reducing the heat generated by the downlights.
Designed to have minimal seams and joins
By reducing the seams and joins in the stainless steel canopy, it is even easier to clean and keep looking great.
Specification
-
View full specification
Close full specification
Product profile
- Typewall mounted canopy
- Finishglass, stainless steel
- Domestic warranty details (yrs)2
- Nominal width (cm)900
- Design family (eline)Westinghouse Cube
Dimensions
- Total product height (mm)600 mm
- Total product width (mm)900 mm
- Total product depth (mm)480 mm
- Diameter of ducting (mm)150
- Minimum installation height from cooking surface Gas (mm)650
- Minimum installation height from cooking surface Electric (mm)650
- Maximum canopy chimney height (mm)1100
- Flue cover depth (mm)290
- Flue cover width (mm)320
Motor/fan
- Number of fans1
- Number of fans speeds3
- Auto offYes
- Type of motorcentrifugal
- Maximum airflow M3/Hr800
- Noise level dB high75
- Noise level dB low65
- Variable speed controlYes
Controls
- Control panelblack glass electronic touch
- Safety/ display indicatorsauto thermal cutout safety switch, automatic safety cut off, grease filter saturation indicator
- LED speed displayYes
Filters
- Number of filters1
- Type of filtermultilayer aluminum micromesh filters
Lights
- Number of lights2
- Wattage of light40
Ducting / recirculation
- Ductingoptional accessory
- Top or rear duct holetop
- Recirculation optionYes
- Recirculation kitoptional accessory
- Front recirculating optionNo
- Optional extension flueYes
- Type of filterCarbon
- FilterAR610CF
- Number of optional filters requiredtwo
- Ducting accessory availableAR610RK
