Dimension
- 1782 mm (H)
- 913 mm (W)
- 749 mm (D)

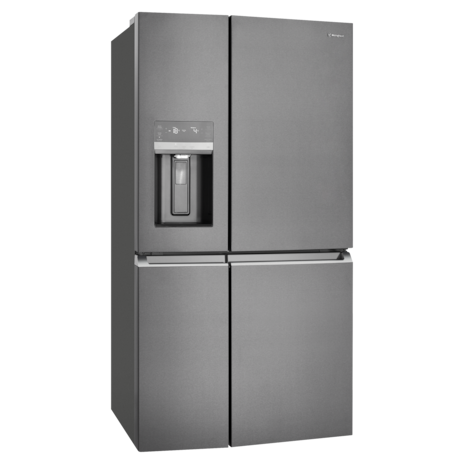

609L Quad Door fridge - Dark stainless steel
913W
x
749D
x
1782H(mm)
609L quad door fridge, dark stainless steel with an ice & water door dispenser, FlexSpace™ fully convertible compartment offering 5 predefined temperature settings, FreshSeal™ automatic humidity control crispers, 3.5-star energy rating, Slide Back and Flip Up shelves and SnackZone.
609L Quad Door fridge - Dark stainless steel
Understanding new capacity and energy ratings
From the 15th August 2021, the way refrigerators are tested to calculate Energy Star Ratings and energy consumption have changed. This means that the capacity and energy rating calculations have changed, however the product remains unchanged. Be sure to check all new ratings to ensure that your comparisons are consistent with the new standards.
One compartment, any occasion
Our FlexSpace Convertible Compartment has a temperature range from -23C to +7C. With 5 predefined settings to meet your changing needs, you can choose to chill your drinks, freeze your meat or store your deli snacks with a touch of a button* *within 2 hours
SmartSplit Door Design
Optimally split doors give you more usable space in your fridge door. You can reach larger items in a quick and easy manner, saving you the need to open both doors every time.
FreshSeal Easy Glide Crispers
FreshSeal Crispers with automatic humidity control give you the flexibility to look after your fruit and vegetables the right way. Designed with your comfort in mind, the easy glide crisper bins open effortlessly and provide easy access even when they're full.
Filtered Ice and Water Dispenser
The dispenser provides fresh, filtered water as well as cubed or crushed ice at the touch of a button for all your family needs
Slide Back and Flip Up Shelves
The flexibility to slide back or flip up some of the fridge shelving makes fitting those extra tall items or large platters a piece of cake.
UltraChill
The UltraChill setting is a deep chill at -2C which keeps meat and fish fresh in optimum condition for longer without freezing which ensures the fresh texture is maximised and moisture loss is reduced compared to regular deep freezing. This saves your time defrosting meat and more time to enjoy with family.
Drinks Storage
Store your drinks at the ideal temperature every time by setting the drawer at 7C for perfectly chilled wine and champagne, or at 0C for ice cold drinks.
Snacks Storage
Snacks Storage(AU & NZ)Edit DeleteStore your cold meats and cheese at 3C, the ideal temperature for fresh family favourites to be ready on the go.
SnackZone
The SnackZone is the ideal compartment for family favourites. The optimal height for even the smallest family members to reach, ensuring healthy snacks are always available.
DualCooling
With the DualCooling system, the fridge and freezer compartments work independently to maintain the optimum temperature and humidity to keep foods fresher or frozen.
Features
SmartSplit Door Design
FreshSeal Easy Glide Crispers
DualCooling
Slide Back and Flip Up Shelves
Fingerprint resistant stainless steel finish
SnackZone
Electronic touch controls
Electronic temperature controls
LED lighting
More environmentally friendly refrigerant (R600a)
Door alarm
Frost-free system
Quick chill function
Quick freeze function
Holiday energy efficient mode
Egg tray
Specification
-
View full specification
Close full specification
Product profile
- Domestic warranty details (yrs)2
- Refrigerator Typequad door
- Exterior door finishdark stainless steel
- Exterior cabinet finishcharcoal grey
- Handle designintegrated
- Fridge door openingleft and right
- Cooling systemfrost free
- Freezer door opening left and right
- RefrigerantR600a
- Dispenser typeice and water
- Plumbed water supply requiredYes
- Additional domestic warranty for the sealed refrigeration system only (yrs)3
Dimensions
- Total height (mm)1782 mm
- Cabinet height (mm)1756
- Total width (mm)913 mm
- Cabinet width (mm)908
- Total depth (mm)749 mm
- Cabinet depth (mm)625
- Depth door open 90degree (mm)1189
- Food Compartment Capacity (L) - AS/NZS 4474.1 2007 (IEC 62552- 2015) *371
- Freezer Compartment Capacity (L) - AS/NZS 4474.1 2007 (IEC 62552- 2015) *147
- Total Capacity (L) - AS/NZS 4474.1 2007 (IEC 62552- 2015) *609

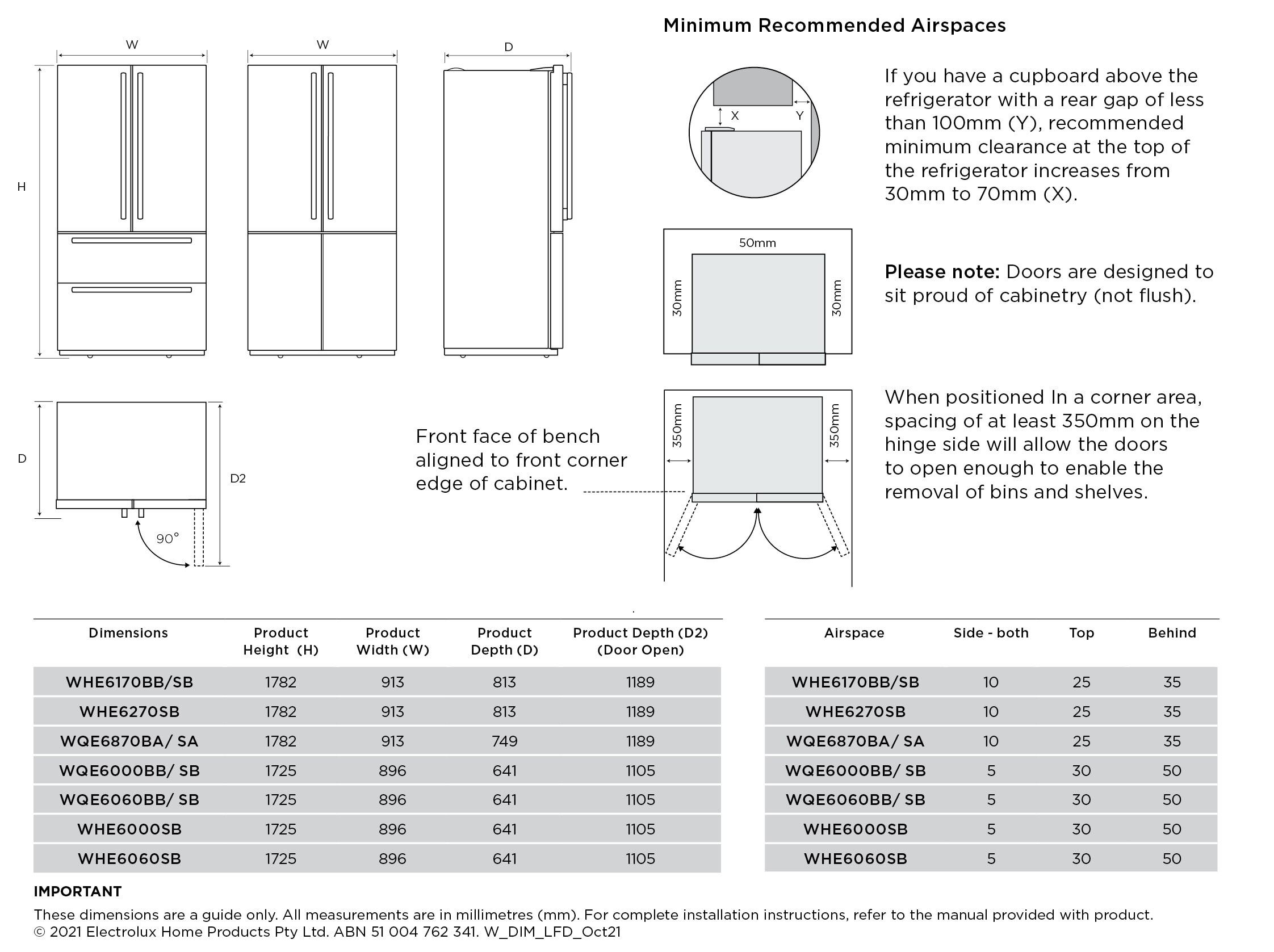

- Air space above cabinet (mm)25
- Convertible Compartment Capacity (L) - AS/NZS 4474.1 2007 (IEC 62552- 2015) *91
- Food compartment capacity (gross in litres)413
- Freezer compartment capacity (gross in litres)267
- Total Gross Capacity (L)680
Energy
- Energy Star Rating - AS/NZS 4474.1 2007 (IEC 62552- 2015) *3.5
- Energy Consumption (kWh/year) - AS/NZS 4474.1 2007 (IEC 62552- 2015) *501
- Energy Star Rating AS/NZS 4474.2:20093
- Energy consumption AS/NZS 4474.2:2009 (kWhr/yr)560
Refrigerator system
- Controlselectronic (with display)
- Controls locationinternal
- Controls typetouch
- Control functionsquick freeze function, quick chill, lock, sabbath mode, ice maker
- Door alarmfridge and freezer
Food compartment
- Shelf materialglass
- Type of shelfspill safe shelf, adjustable shelf
- Flip up shelf1
- 1/3 width shelves 1
- 2/3 width shelves1
Food compartment door
- Shallow bin2
- Deep bottle bin1
- 1/3 width bins1
- 2/3 width bins1
- Expandable bin1
Freezer compartment
- Ice MakerAutomatic
Freezer door
- Freezer door bins - full width2
Convertible compartment/drawer
- Convertible compartmentYes
- Slide out drawer1
- Interior lampLED
- FunctionRefrigerator and freezer
- Temperature control maximum (°C)7
- Temperature control minimum (°C)-23
- Preset temperature settings 5
- Freezer (-23°C / -18°C)Yes
- Ultra ChillYes
- Cold drinks (0°C)Yes
- Deli snacks (3°C)Yes
- Wine and champagne (7°C)Yes
Shelving
- Shelvingglass shelf
- Type of shelfslide out shelf with wine rack
- Number of shelves2
Convertible compartment door
- Door bins - full width2
